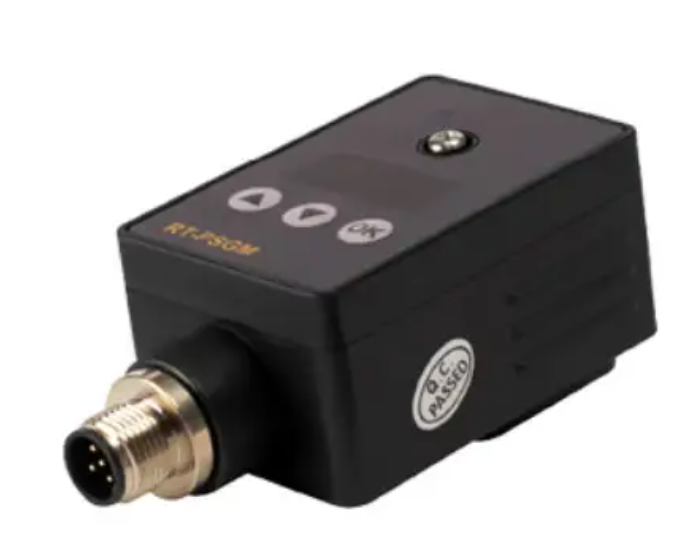

Rt-Psgm Plug-nyob rau hauv Professional Power Proportional Amplifier
Rt-Psgm Plug-in Professional Power Proportional Amplifier rau Hydraulic Proportional Valves
Khoom Description
RT-PSGM yog lub siab -precision, multi-channel proportional amplifier tsim los rau cov tshuab hluav taws xob siab tshaj- hydraulic tswj. Engineered nrog adaptive signal processing thiab industrial-qeb Cheebtsam, nws muab ultra- teb tswj, tsis muaj suab nrov, thiab seamless compatibility nrog proportional li qub, servo actuators, thiab IoT -enabled machinery. Tsis zoo li cov amplifiers, RT-PSGM koom ua ke tiag- lub sijhawm ua yuam kev them nyiaj thiab kev txhawb nqa rau kev lag luam- cov qauv kev sib txuas lus (CANopen, Modbus RTU), ua rau nws zoo tagnrho rau cov ntawv thov uas yuav tsum tau kaw nruj heev- voj tswj, xws li robotics, precision hydraulic automation.
Technical Specifications
| Parameter | Specification | Chav tsev | Kev kuaj mob |
| Tus naj npawb ntawm Channel | 2 (Independent, configurable) | - | Dual -channel cais |
| Input Signal Range | 0-10V / 4-20mA | V/mA | ± 0.1% linearity yuam kev |
| Tso zis ntau yam tam sim no | 4-20 mA (tus qauv); 0-24 mA (yeem) | mA | Load resistance Tsawg dua lossis sib npaug li 500 Ω |
| Teb Sijhawm | Tsawg dua los yog sib npaug li 5 ms | ms | Kauj ruam tswv yim (10-90% ntawm tag nrho cov teev) |
| Tswj Precision | ± 0.25% FS | % | Ntawm 25 degree, ruaj khov fais fab mov |
| Suab nrov (RMS) | Tsawg dua lossis sib npaug li 50 µV | µV | Cov tswv yim- xa mus, 10 Hz-10 kHz bandwidth |
| Fais fab mov Range | 24VDC (± 10%) | V | 18-36V DC (kev ua haujlwm txwv) |
| Ua haujlwm kub | -25℃rau +70 degree | degree | Nrog derating saum toj no +50 degree |
| Humidity kam rau ua | 5 -95% RH (tsis-condensing) | % | IEC 60068-2-30 tus qauv xeem |
| Kev sib txuas lus raws tu qauv | CANOpen (CiA 301), Modbus RTU, analog | - | Baud tus nqi: 125-500 kbps (CANopen) |
| Kev tiv thaiv nta | Overcurrent, overvoltage, luv-circuit | - | Auto-shutdown + fault code qhia |
| Qhov hnyav | 1.2 | kg | Net nyhav (nrog lub dab dej kub) |
Qhov zoo
Ultra-Precision Control: Nruab nrog 24-ntsis ADC/DAC thiab FPGA-raws li cov teeb liab ua, RT-PSGM ua tiav ± 0.25% tag nrho- nplai qhov tseeb, tseem ceeb rau kev siv xws li CNC tshuab cuab tam axis tswj lossis neeg hlau grippers xav tau qib siab.
Adaptive Noise Suppression: Dual-theem EMI filtering (feem ntau-mode + differential-mode) thiab shielded twisted-pair outputs txo electromagnetic cuam tshuam (EMI) los ntawm 40 dB, kom ruaj khov teeb liab nyob rau hauv siab - suab nrov, welding ib puag ncig sib txawv -speed drives).
Multi-Txoj kev yooj yim: Txhawb kev sib txuas lus hybrid (analog + fieldbus), ua kom muaj kev koom ua ke nrog cov txheej txheem qub qub (ntawm 0-10 V analog) thiab cov chaw tsim khoom ntse (ntawm CANopen / Modbus). Configurable parameters (tau, damping, ramping) ntawm PC software txo lub sij hawm teeb tsa los ntawm 50%.
Kev Tswj Thermal: Kev ua kom txias (lub dab dej kub + thermal sensor) tswj kev ua haujlwm ruaj khov mus txog +70 degree, nrog kev tiv thaiv overload tiv thaiv kev puas tsuaj los ntawm qhov ntev siab - cov zis tam sim no (piv txwv li, 24 mA txuas ntxiv ntawm 50℃).
Diagnostics & Maintenance: Ua-hauv OLED zaub qhia tau tiag- lub sijhawm tsis muaj zog (input voltage, tso zis tam sim no, txhaum cai). Kev saib xyuas tej thaj chaw deb ntawm IoT rooj vag (yeem) ua kom muaj kev saib xyuas kev kwv yees los ntawm kev taug qab cov kev sib tw lossis kev sib txuas lus yuam kev.
Daim ntawv thov
RT-PSGM yog tsim los rau kev lag luam uas qhov tseeb thiab kev ntseeg siab tsis yog- sib tham tau:
Industrial Automation: Robotic caj npab (txoj hauj lwm / ceev tswj), xaiv - thiab - qhov chaw tshuab, thiab conveyor siv synchronization.
Txawb Hydraulics: Kev tswj hwm ntawm cov cuab yeej siv tsim kho (boom / thoob ua haujlwm), tshuab ua liaj ua teb (cov tshuaj tsuag dej ntws), thiab cov tsheb hauv hav zoov (winch ceev tswj).
Txheej Txheem Tswjhwm: Txhaj tshuaj molding tshuab (clamp / ejection quab yuam tswj), hlau stamping presses (ram txoj hauj lwm raug), thiab xeem benches (servo-hydraulic load simulation).
Marine & Offshore: Hydraulic steering systems (nkoj / yacht), offshore crane load tswj, thiab desalination cog valve actuation (corrosion{0}}resistant txheej xaiv).

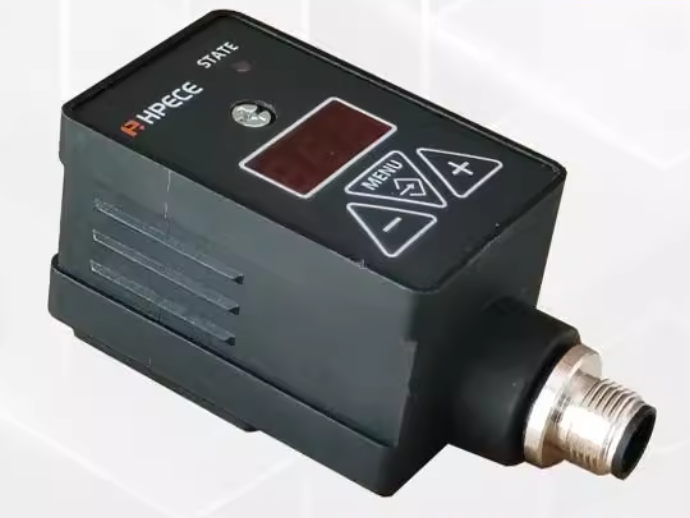

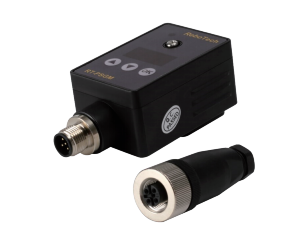

Cov duab ntxaws
