E200-1 Duplex Hydraulic Iav Twj Nqe
E200-1 Duplex Hydraulic Iav Twj Nqe Cbtl-E425e420-Alpr Iav Meter Pump
Khoom Description
Lub E200-1 Duplex Iav Twj yog ib qho tshwj xeeb dual-channel hydraulic kua tsim los rau lub zog ntau- cov tshuab ua haujlwm uas xav tau ib txhij lossis ywj siab xa khoom. Engineered nrog precision-machined Cheebtsam thiab ib qho chaw- txuag duplex configuration, lub twj tso kua mis no muab kev txhim khu kev qha kev ua tau zoo nyob rau hauv daim ntaub ntawv uas ob hydraulic circuits yuav tsum tau ua hauj lwm nyob rau hauv tandem los yog cais-tso tawm qhov yuav tsum tau rau ntau standalone twj tso kua mis thiab txo qhov system complexity.
Qhov zoo tshaj plaws rau OEMs thiab kev sib koom ua ke, E200-}1 sib txuas ua ke rugged durability nrog saj zawg zog tsim, ua rau nws mus-rau kev xaiv rau mobile thiab industrial hydraulics xav tau compact loj, zog efficiency, thiab seamless kev koom ua ke.
Nta
1. Dual-Channel Duplex Architecture
Independent Pressure Ports: Nta ob qhov chaw nkag / qhov hluav taws xob sib cais (ISO 228/1, ¾ "BSPP txhua) nrog cov iav sib cais, ua kom cov khoom xa tuaj ib txhij ntawm ob qhov sib txawv / ntws (piv txwv li, rau kev tswj hwm thiab nqa cov haujlwm hauv cov khoom siv tsim kho) lossis kev ua haujlwm sib luag kom nce tag nrho ntws (txog 182 cm³).
Synchronized lossis Independent Control: Iav yog qhov tseeb- sib txuam kom ntseeg tau tias kev ua haujlwm sib luag; kev xaiv iav piv kev hloov kho tso cai rau kev hloov pauv tsis sib xws ntawm kev faib tawm ntawm cov channel.
2. High-Kev xa hluav taws xob muaj zog
Helical Iav Teeb: Cov iav helical hauv av nrog cov hniav zoo nkauj txo cov suab nrov (tsawg dua lossis sib npaug li 78 dB (A) ntawm qhov ntsuas nrawm) thiab txo qis kev sib tw, ua kom ruaj khov hydraulic siab rau cov actuators rhiab heev.

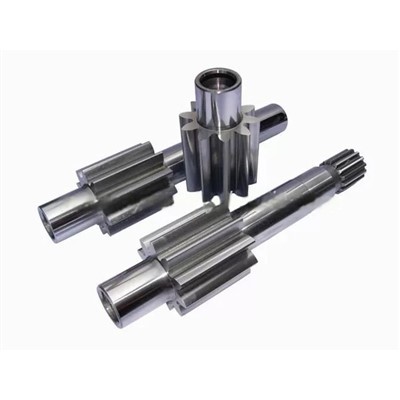

Hardened Alloy Steel Cheebtsam: Iav thiab shafts yog tsim los ntawm 20CrMnTi alloy steel, rooj plaub -hardened rau HRC 58+, txhim kho hnav tsis kam thiab ncua kev pab cuam lub neej los ntawm 35% vs. standard duplex twj.
3. Compact, Rugged vaj tse
Aluminium Alloy Chassis: Lub teeb yuag (7.8 kg) tsis tau nruj vaj tse muab kev co zoo heev damping thiab corrosion kuj, thaum tswj qhov seem stability nyob rau hauv siab (max ua hauj lwm siab: 220 bar ib channel).
Dual-Dip Mechanical Seals nrog Dip Seals: Tiv thaiv cov roj to thiab cov pa paug tawm hauv qhov chaw hnyav (IP55 tiv thaiv kev ntsuas), txawm tias muaj kev kub ntxhov ntau zaus.
4. Kev Tswj Xyuas Thermal & Kev Tsim Kho Tsawg
Optimized Internal Flow Paths: Streamlined porting and reduce internal clearances maximize volumetric efficiency (txog 90% ntawm 2000 rpm), txo qis zog poob thiab kub tiam.
Integrated Cooling Fins: Txhim kho cov cua sov thaum lub sij hawm tas mus li siab -load hauj lwm (max kev khiav hauj lwm temp: 110 degree), ua kom ntseeg tau zoo ib yam nyob rau hauv huab mob (-25℃rau +110℃).
Technical Specifications
| Parameter | Tus nqi |
| Qauv nab npawb | E200-1 Duplex |
| Tag Nrho Tawm (cm³ / rev) | 91 (rau channel) |
| Combined Max Tawm | 182 cm³/v |
| Max Ua Haujlwm Siab (bar) | 220 (ib channel) |
| Rated Ceev (rpm) | 1500-2200 |
| Max ceev (rpm) | 2500 |
| Volumetric Efficiency (%) | Ntau dua lossis sib npaug rau 90 (ntawm 2000 rpm, 150 bar / channel) |
| Chaw nres nkoj loj (ISO 228/1) | ¾ "BSPP (Inlet / Outlet ib channel) |
| Ua haujlwm kub (degree) | -25 rau +110 |
| Qhov hnyav (kg) | 7.8 |
| Khoom siv (Gear / Ncej) | 20CrMnTi (cov ntaub ntawv- tawv) |
| Sealing Khoom | NBR (yeem FKM) |
Daim ntawv thov
Lub E200-1 Duplex Gear Pump ua tau zoo hauv cov tshuab uas xav tau kev ua haujlwm hydraulic dual, suav nrog:
Mobile Machinery: Excavators (s viav vias + nqa circuits), skid-steer loaders (tsav + auxiliary hydraulics), thiab cov tsheb laij teb ua liaj ua teb (PTO + siv twj).
Cov Khoom Siv Muaj: Xovxwm tshuab (clamping + ejection), txhaj tshuaj molders (txhaj tshuaj + clamping), thiab conveyor systems (tseem ceeb tsav + indexing).
Kev tuav cov khoom: Forklifts (nqa + qaij), aerial ua haujlwm platforms (nqa + stabilizer), thiab automated cia systems (kab rov tav + ntsug tsav).
Marine & Offshore: Hydraulic fais fab units (HPU) rau winches (hoisting + braking) thiab crane systems (lifting + slewing).
